MASTERCAN

Vehicle Data Interface MasterCAN. Full Range of Vehicle Operational Data in a Friendly Format

Contactless CANbus data gathering

Data is gathered by contactless reader Crocodile

CAN conversion to other protocols

Both j1939 and j1708 can be converted to RS232/485 protocols

Data that matters

Device can sort out irrelevant for telematics packages

j1708 convertion

Volvo internal network data convertion to standard CANbus

Applications

A modern automobile has dozens of compound electronic devices on-board. Increasingly, CAN bus is used for data exchange between devices. The purpose of MasterCAN products is integration of automobile CAN bus and elements of transport telematics systems. MasterCAN devices are intended to put the operation of telematics terminals with CAN input to a qualitatively new level and allow you to:

safe data readout of automobile CAN bus
organization of telematic CAN bus with maximum needed dataset
intelligent combining of several CAN buses
signal reception of analog sensors, their digital conversion and transmitting to the CAN bus
identification of the necessary information inside the CAN bus and its transmitting over interfaces that are available in telematic terminal (analog, RS-232, RS-485)

Main features

Contactless reading - no wire cutting, soldering or crimping
j1708 convertion - Volvo internal network ready
Quick installation - out of box plug and play setup without configuration

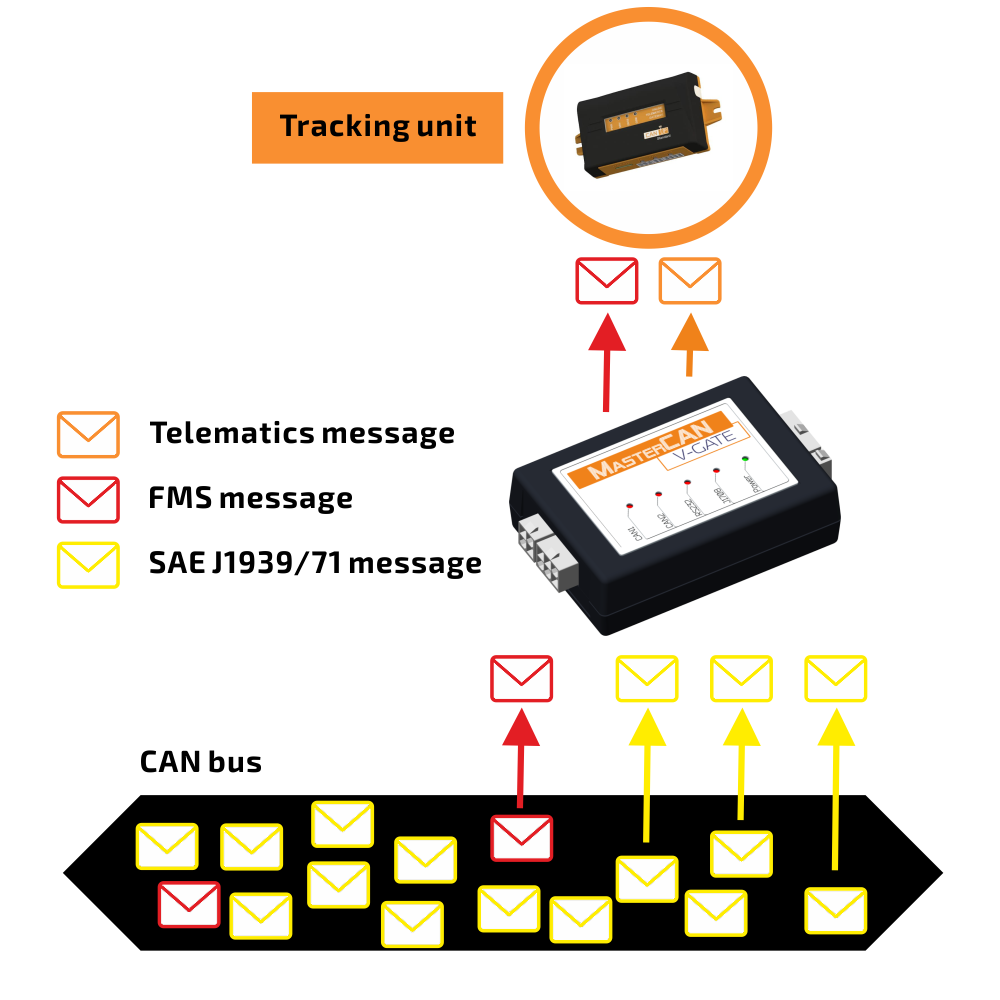

CAN filtration - selection of parameters and arranging them into messages easy to read and process on telematics terminals
Selection of outputs - CAN, RS-232, and RS-485 possible output messages

Different models to fit in any applications

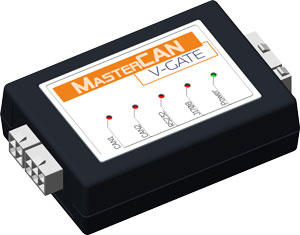

MasterCAN V-Gate

MasterCAN V-GATE is used in vehicle telematics systems to receive parameters of the vehicle operation from CAN and J1708 onboard buses. It is suitable for any type of vehicles (trucks, buses, agricultural machinery) where J1708 and/or CAN buses are used, e.g. vehicles manufactured by Volvo, Freightliner, Cummins.

A telematics tracking device with CAN or RS-232 input interfaces may be used to receive data. For more details regarding the interface adjustment, the protocol used and the contents of the transmitted data please see the MasterCAN operation manual.

There are several options to connect MasterCAN V-GATE to operate as a part of a telematics system.

Buy online

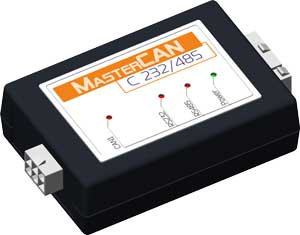

MasterCAN 232/485

MasterCAN C 232/485 is used in fleet telematics systems to receive data on parameters of the vehicle operation from the standard CAN bus. It is suitable for any type of vehicles (trucks, buses, agricultural machinery) where CAN is used.

A tracking device with RS-232 or RS-485 input interface may be used to receive data. Details regarding the interface adjustment, protocol and contents of the transmitted data are available in MasterCAN vehicle data interface operation manual.

There are several options to connect MasterCAN C 232/485 to operate as a part of a telematics system.

Buy online

MasterCAN CC

MasterCAN CC is used in fleet telematics systems to receive vehicle operation parameters from the standard CAN bus. It is suitable for any type of vehicle (trucks, buses, agricultural machinery) where CAN is used.

A tracking device with CAN input interface can be used to receive data. Details regarding the interface adjustment are available in MasterCAN vehicle data interface operation manual.

Buy online

Model	Input Interface (Protocol)	Output Interface (Protocol)
MasterCAN CC	CAN (SAE J1939/71)	CAN 2.0B (SAE J1939/71)
MasterCAN C 232/485	CAN (SAE J1939/71)	RS-232 and RS-485(ASCII/Modbus/DUT-E COM)
MasterCAN V-GATE	CAN (SAE J1939/71) and J1708 (SAE J1587)	CAN 2.0B (SAE J1939/71) andRS-232 ASCII/Modbus/DUT-E COM)
